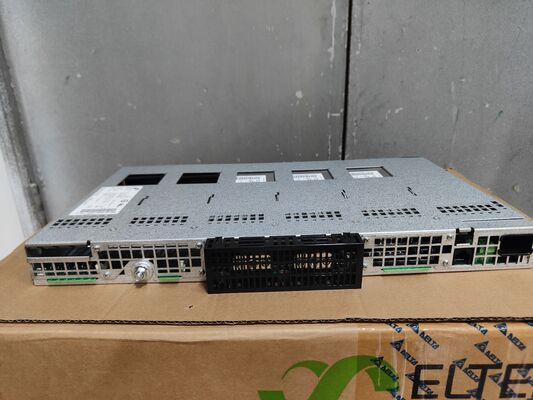

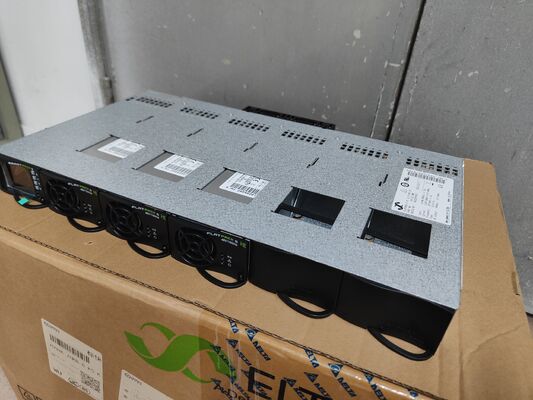

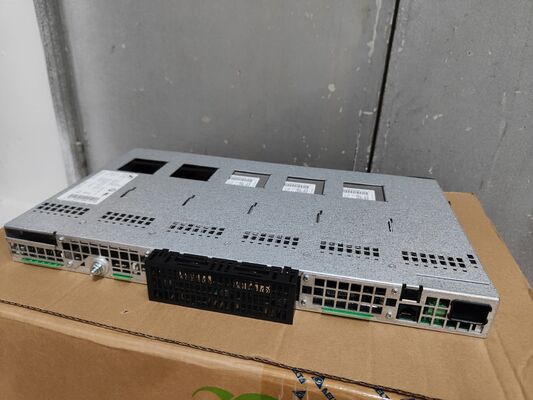

Eltek CTOS0501.XXX Flatpack S 1U 5R 48Vdc 5-Slot Power System with 3x 1800HE Modules

19" 1U form factor

Max. 9kW with 5 rectifier slots

Pre-configured with Smartpack S controller and 3x Flatpack2 48/1800HE modules

High-efficiency 48V DC system for telecom and industrial applications

Designed for easy integration and flexible expansion, this system provides a reliable, compact power solution for mission-critical environments.

Key Features

· Ultra-Compact & Shallow Design: Only 210mm depth, ideal for shallow cabinets and space-constrained installations.

· High Power Density & Efficiency: Up to 95.5% efficiency, reducing energy cost and heat generation.

· Flexible & Expandable: 5-module slot design, supports easy capacity expansion.

· Advanced Monitoring & Control: Compatible with Smartpack S, Smartpack 2, and Compack controllers for full system supervision.

· Marine & Offshore Approved: Meets rigorous offshore and marine specifications for safe, stable operation.

· Comprehensive Protection: Reverse current protection, SIL3 rated output versions available, FET output protection.

· Wide Application: Perfect for communication systems, GMDSS, emergency lighting, SAS systems, control & protection, and various offshore power demands.

Specification:
